🔌 Understanding Logic Gates: The Building Blocks of Digital Electronics

In the age of smartphones, computers, and smart homes, digital electronics power nearly every aspect of modern life. At the core of this digital revolution are logic gates — the tiny switches that form the foundation of all digital circuits. Whether you're a student, tech enthusiast, or simply curious about how devices "think," understanding logic gates is a great place to start.

---

🔍 What Are Logic Gates?

Logic gates are the basic building blocks of digital circuits. They perform logical operations based on one or more binary inputs and produce a single binary output — either 0 (OFF) or 1 (ON).

Logic gates are typically implemented using transistors, and they are used to build more complex components such as memory, processors, and controllers.

---

⚙️ Types of Basic Logic Gates

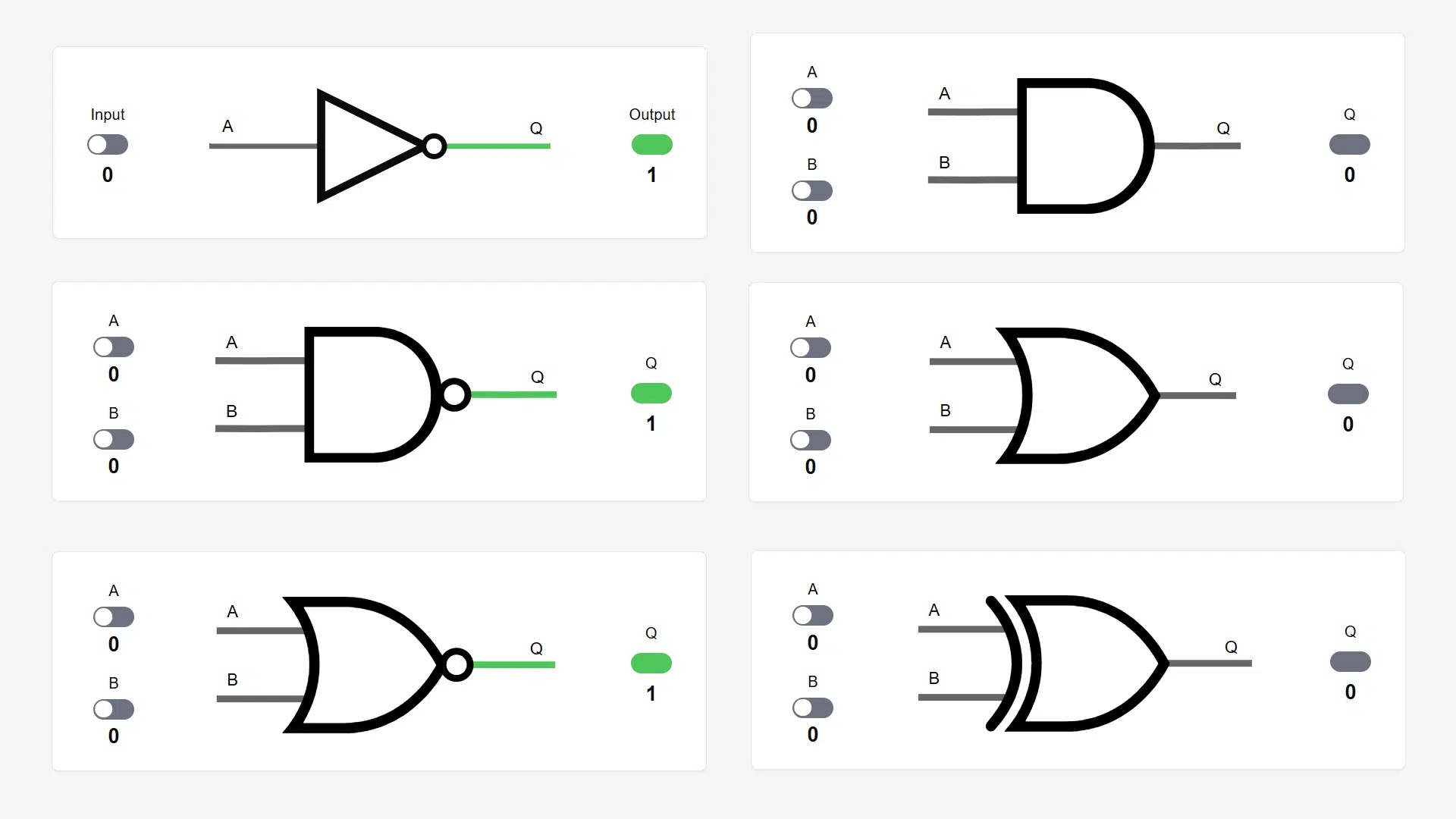

There are seven basic logic gates. Let’s explore each with their symbol, truth table, and basic function.

1. AND Gate

• Symbol: D-shaped with two inputs and one output.

• Function: Output is 1 only if both inputs are 1.

A	B	Output
0	0	0
0	1	0
1	0	0
1	1	1

---

2. OR Gate

• Function: Output is 1 if at least one input is 1.

A	B	Output
0	0	0
0	1	1
1	0	1
1	1	1

---

3. NOT Gate (Inverter)

• Function: Output is the opposite of the input.

A	Output
0	1
1	0

---

4. NAND Gate

• Function: Opposite of AND. Output is 0 only if both inputs are 1.

A	B	Output
0	0	1
0	1	1
1	0	1
1	1	0

---

5. NOR Gate

• Function: Opposite of OR. Output is 1 only if both inputs are 0.

A	B	Output
0	0	1
0	1	0
1	0	0
1	1	0

---

6. XOR Gate (Exclusive OR)

• Function: Output is 1 if only one input is 1.

A	B	Output
0	0	0
0	1	1
1	0	1
1	1	0

---

7. XNOR Gate (Exclusive NOR)

• Function: Output is 1 if both inputs are the same.

A	B	Output
0	0	1
0	1	0
1	0	0
1	1	1

---

🧠 Why Are Logic Gates Important?

Logic gates are used in:

• Microprocessors and CPUs

• Memory units like RAM and ROM

• Digital clocks

• Smartphones

• Calculators

• Robotics and automation systems

By combining thousands (or even millions) of logic gates, engineers can build complex systems capable of performing advanced tasks.

---

🛠️ Real-World Example

Let’s say you're designing a security system. You want an alarm to sound only if:

• The door is open AND

• The motion sensor detects movement.

This is a perfect use case for an AND gate — both inputs must be 1 for the output (alarm) to be activated.

---

📚 Conclusion

Logic gates may seem simple, but they are essential to the digital world we live in. Every app, program, and device you use relies on these fundamental components to function. As you dig deeper into electronics or computer science, you'll see how these basic gates lead to powerful technologies.

---
